Servo inverters and frequency inverters: Rigorously practical.
Our classics!

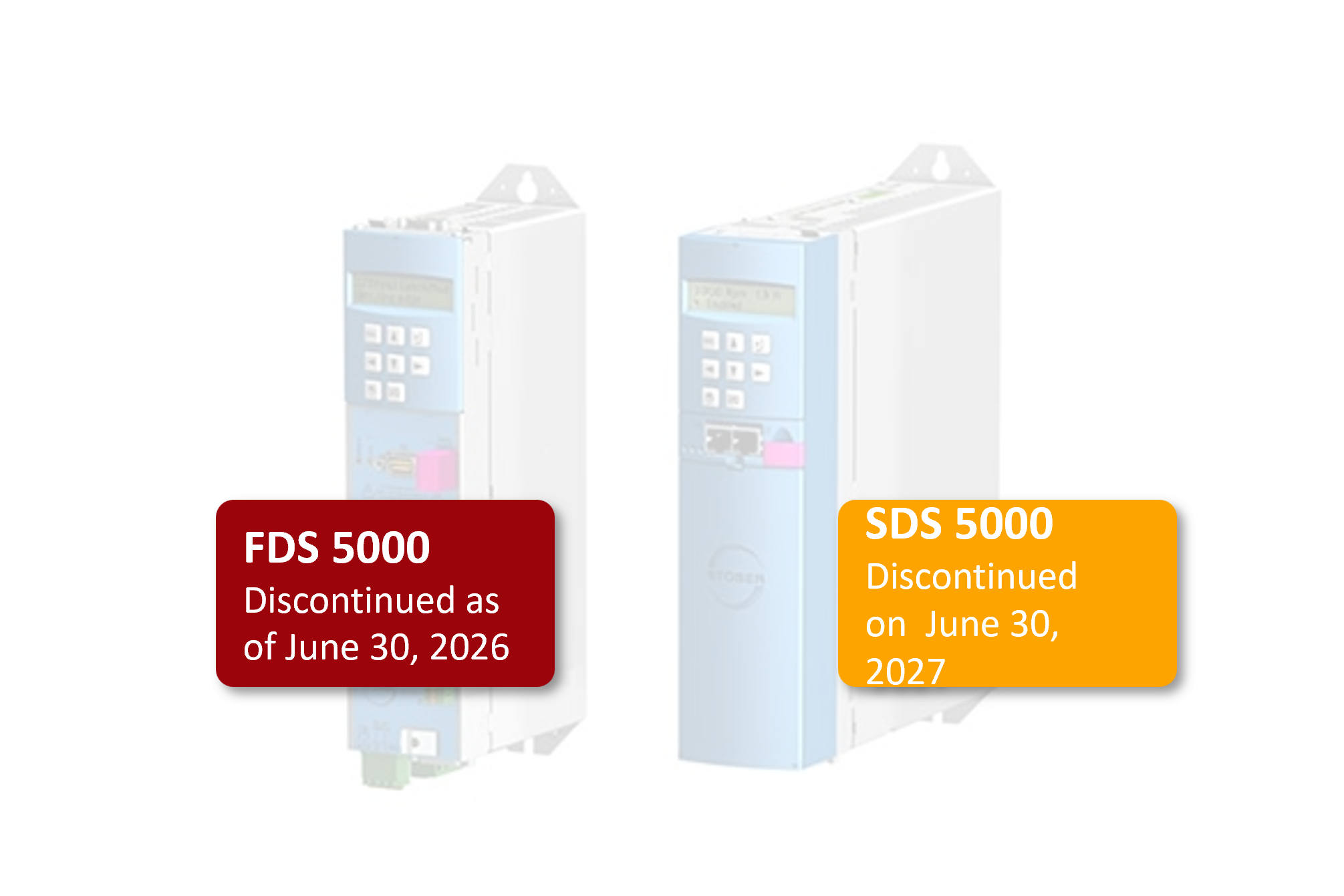

POSIDYN® SDS 5000 – the particularly powerful servo inverter with extensive features and an excellent price-performance ratio.
The alternative – the POSIDRIVE® FDS 5000 frequency inverter, with a lot of potential for feed and positioning drives.
- Power electronics at its best: The 5th generation STOBER inverter
- SDS 5000: Servo power at its best
- FDS 5000: The straightforward option for asynchronous units
Our proven classics: The 5th generation inverters!
POSIDYN® SDS 5000 is a powerful inverter specially designed for demanding tasks in the field of servo technology.
The POSIDRIVE® FDS 5000 frequency inverter also offers great potential for innovation in feed drives and positioning drives for asynchronous servo axes.
You also have an advantage in terms of energy. All STOBER inverters comply with energy efficiency class IE2 in accordance with EN 61800-9-2.
The POSIDYN® SDS 5000 servo inverter is a particularly powerful member of the 5th generation.
High dynamics for fully digital servo axes. Remote maintenance for all typical procedures, just as for on-site service, with technical and legal safeguards.
Self-configuring Integrated Bus (IGB) for communication between up to 32 servo inverters.
To name just a few of its outstanding features.
POSIDRIVE® FDS 5000: The purpose-built asynchronous servo axis optimized for asynchronous geared motors.
This frequency inverter scores points with its extremely practical functions for modern positioning and control drives.
It is also comes perfectly equipped for smooth, fast communication with different fieldbus systems.
Power density:
|
|||||
|
Price category:
|
€ | € | € | € | € |
- Nominal output current (4 kHz): 2.3 – 85 A
- Max. output current (4 kHz): 4.2 – 153 A
- Nominal output current (8 kHz): 1.7 – 60 A
- Max. output current (8 kHz): (8 kHz): 4.3 – 150 A
Find your right fit!
Power density:
|
|||||
|
Price category:
|
€ | € | € | € | € |
- Nominal output current (4 kHz): 1.3 – 16 A
- Max. output current (4 kHz): 2.4 – 28.8 A
- Nominal output current (8 kHz): 1 – 10 A
- Max. output current (8 kHz): 2.5 – 25 A
Find your right fit!
- Operating motors:
- Synchronous servo motors of the EZ or EZS and EZM series
- Asynchronous motors of the IE3D series
- Encoder interfaces:
- EnDat® 2.1/2.2 digital
- Incremental
- SSI
- Resolver (optional)
- Pulse/direction signals (optional)
- EnDat® 2.1 sin/cos (optional)
- Controllable brakes and integrated brake management:
- Up to two 24 VDCbrakes via the optional BRS 5001 brake module
- The BRS 5001 also includes brake management for both brakes with cyclic brake test and brake bed-in functions
- Fieldbus connection: Integrated EtherCAT®, PROFINET®, PROFIBUS DP® or CANopen® communication
- Safety technology: STO and SS1: SIL 3, PL e (Cat. 3)
- Commissioning: With the help of the POSITool commissioning software, various standard applications can be transferred to the inverter; it is also possible to create new applications or expand existing ones using CFC programming based on IEC 61131-3
- Special features:
- Isochronic system bus (IGB) for parameterization and multi-axis applications
- Automatic motor parameterization via the electronic motor nameplate using EnDat® 2.1/2.2 digital
- Brake chopper and line filter
- Digital and analog inputs and outputs (optional)
- Easy-to-use operating unit featuring a plain-text display and buttons
- Paramodul removable data storage for commissioning and service
- Marks and test symbols: CE, UL, cUL (CSA-UL)
- Operable motors: Asynchronous motors of the IE3D series
- Encoder interfaces: Incremental or pulse/direction signals
- Fieldbus connection: Integrated EtherCAT®, PROFINET®, PROFIBUS DP® or CANopen® communication
- Safety technology: STO and SS1: SIL 3, PL e (Cat. 3)
- Commissioning: With the help of the POSITool commissioning software, various standard applications can be transferred to the inverter; it is also possible to create new applications or expand existing ones using CFC programming based on IEC 61131-3
- Special features:
- Digital and analog inputs and outputs
- Integrated holding brake control
- Easy-to-use operating unit featuring a plain-text display and buttons
- Paramodul removable data storage for commissioning and service
- Marks and test symbols: CE, UL, cUL (CSA-UL)
